A dessalinização é um setor essencial para cidades em áreas com escassez de recursos hídricos. Um de nossos clientes, localizado nessa região, fica em um país do Oriente Médio e tem alta demanda por filtração para dessalinização.
Nossa segunda viagem à usina de dessalinização do Oriente Médio ocorreu em agosto de 2018. Na verdade, mantemos contato desde 2016, quando nos conhecemos.
Mais de 100 amostras foram enviadas para cá e cinco testes industriais foram realizados nos três anos em que nos conhecemos.
Desta vez, continuamos a buscar soluções para os desafios de nossos clientes.
Os clientes geralmente enfrentam dois tipos de problemas, começando com o cartucho e a carcaça do filtro.

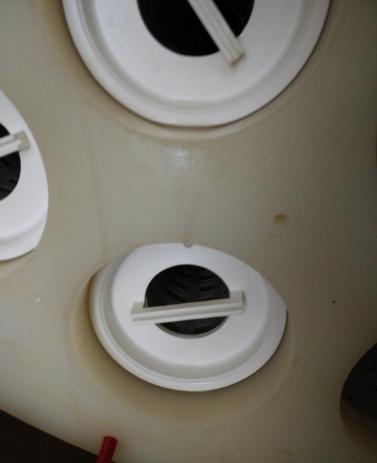

Frequentemente, o cartucho fica preso na carcaça.
Outro problema é o custo excessivamente alto de fabricação e operação.
Para resolver o problema, primeiro reunimos informações sobre todos os produtos utilizados na fábrica e registramos todas as informações específicas necessárias para a análise.
Em seguida, analisamos e estudamos cuidadosamente a qualidade da água, o teor de sólidos e o tamanho das partículas. Usando esses dados reais, projetamos um cartucho com estrutura de membrana.
Isso resultou em taxas de filtração mais altas e maior capacidade de retenção.

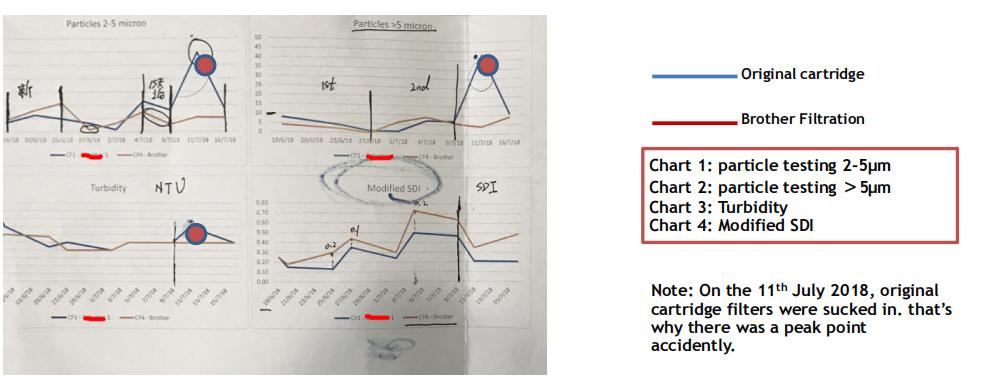

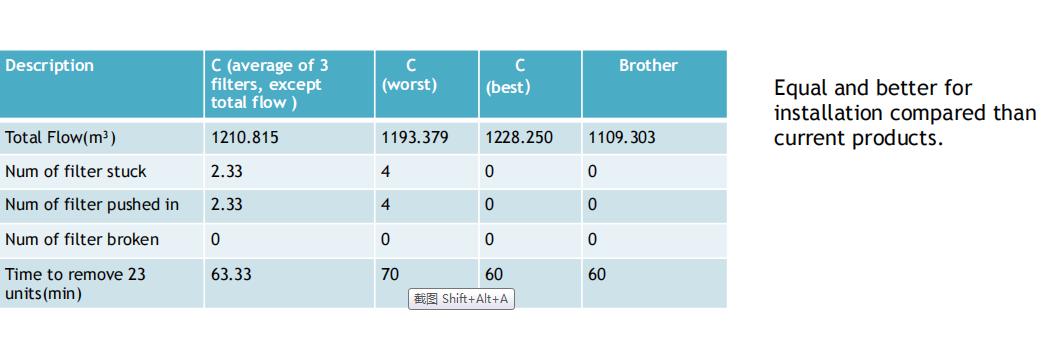

Os gráficos e dados acima demonstram claramente que o desempenho do cartucho de filtro de alto fluxo Brother Filtration MAX-A é semelhante, e às vezes até superior, aos cartuchos atualmente em uso, tornando-o adequado como substituto dos originais.
Além disso, recebemos feedback positivo do departamento de planejamento da fábrica.
Considerando a vazão total, a integridade mecânica, a qualidade do produto e o preço, o custo do filtro original (USD/m³) é 47% maior do que o do filtro Brother Filtration a um preço de 700 unidades e 57% maior a um preço de 4.000 unidades. Em conclusão, os filtros Brother Filtration representam um investimento sólido para a empresa e podem reduzir significativamente os custos operacionais e de manutenção.
O cartucho de filtro de alto fluxo Max-A da Brother Filtration oferece resultados excepcionais tanto em desempenho de filtragem quanto em economia de custos. Esses resultados são baseados em dados reais.

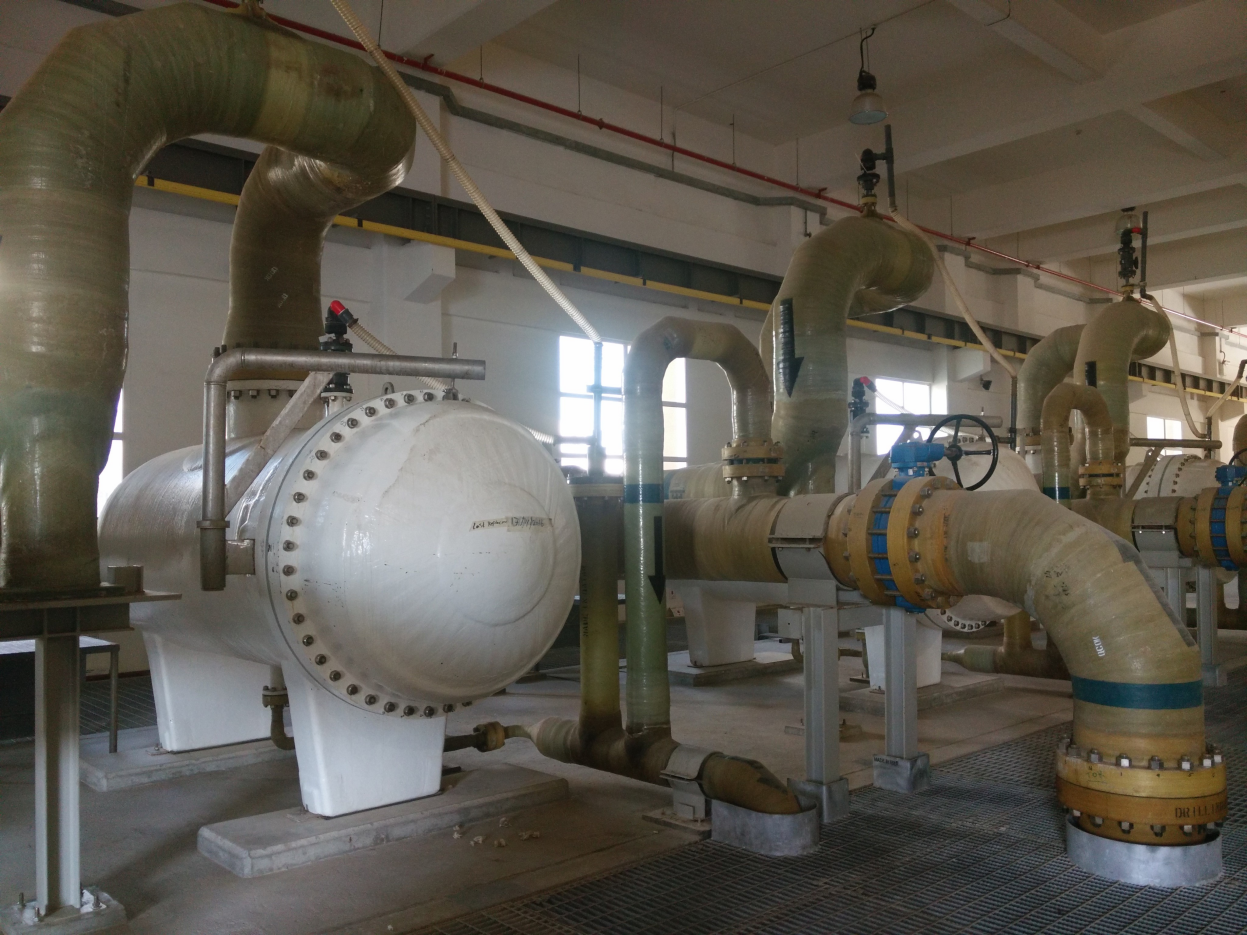

Nosso cliente é uma usina de dessalinização de água do mar altamente profissional, com uma equipe de manutenção rigorosa e tecnicamente qualificada para cada processo, projetada para controlar e reduzir os custos gerais de operação e manutenção da planta.
O cartucho de alto fluxo Max-A oferece desempenho de filtragem superior, com taxas de filtragem mais altas e maior capacidade de retenção de sujeira, resultando em menos problemas de entupimento.
Todas essas vantagens contribuem para menores custos de investimento e redução do tempo de manutenção, levando a maior eficiência e produtividade, e menos problemas para os trabalhadores.
